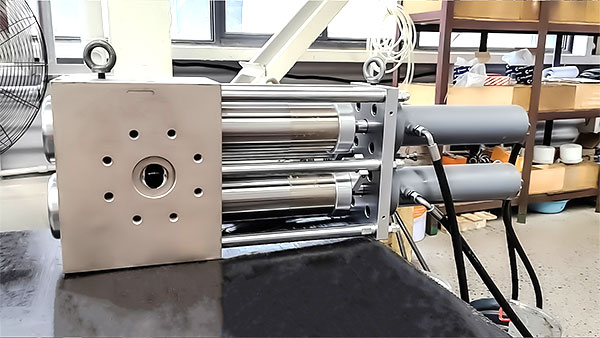

The dual-column screen changer is a core filtration device in plastic pelletizing production lines. It features a screen-changing function that allows for operation without stopping the machine, efficiently intercepts impurities in the melt, stabilizes production conditions, and ensures the quality of plastic products. It is widely used in various plastic extrusion processing industries.
I. Working Principle
The Zhengzhou Bate dual-column screen changer employs a dual-column, dual-flow-channel design, with both screens operating simultaneously. During screen replacement, one screen remains in operation while the other is replaced, enabling non-stop screen changes without interrupting the material flow. This ensures a continuous, uninterrupted production process and offers significant advantages such as high-pressure and high-temperature resistance, as well as no pressure fluctuations during the screen change.
II. Key Features
First, it offers excellent continuous production capability. During screen changes, one station operates while the other is being changed, with no shutdown throughout the process. Material pressure fluctuations are minimal, eliminating production losses and scrap issues caused by downtime. Second, it provides stable filtration performance. The dual-channel structure increases the filtration area, accommodating 80–250 mesh screens. It withstands temperatures up to 400°C and pressures up to 35 MPa, ensuring a tight seal with no material leakage, and can also remove melt bubbles. Third, operation and maintenance are simple. Hydraulic-driven screen changing takes only 3–8 seconds, and the PLC control system supports automatic screen changing based on pressure differential or a preset timer. The modular quick-release design significantly reduces operational and maintenance costs. Fourth, the machine offers strong adaptability, compatible with various extruders and suitable for thermoplastics, recycled materials, and high-viscosity materials, with customization options available. Additionally, the equipment features a compact structure and short residence time, preventing material carbonization and degradation.
III. Primary Application Scenarios
Ideal for pelletizing high-impurity recycled materials, it is the preferred equipment for high-end underwater pelletizing; it is compatible with water-ring pelletizing production lines, balancing investment and production performance. It can also be used in sheet extrusion, high-pressure pipe extrusion, and chemical fiber polymerization applications; the dual-column, four-station model features minimal pressure and flow fluctuations, meeting the high-standard production requirements for precision films and specialty plastics.
IV. Practical Selection Recommendations
Match filter specifications to production output to avoid frequent screen changes. For high-impurity applications such as recycled materials, prioritize the standard dual-column model with high rigidity and minimal pressure fluctuations. For continuous production, select the four-station model; to reduce consumable costs, choose a backflush screen changer. When paired with an intelligent PLC control system, it enables automatic screen changing and fault alarms, reducing human error.
