Slide plate screen changer

Slide plate screen changer.pdf

Slide plate screen changer introduction:

Slide plate screen changer is hydraulic extrusion screen changer suitable for processing a wide variety of thermoplastics on applications ranging from sophisticated multiple layer thin film extrusion to the heavy demands of recycling, and includes single plate screen changers for extruder with two screen stations, single plate screen changers with four filter blocks, and double plate continuous screen changer.


1) Single-plate hydraulic screen changer with double working positions:

Product introduction:
◆ This series plate hydraulic screen changer use overall structure with small dimension and short flow channel. It can be used with kinds of standard extruders.
◆ Adopt pressure-driven sealing system design. Sealing gap can be compensated automatically. It can meet any polymer high production capacity with no stop and leakage.
◆ Screen changing process can complete in 2 seconds with pressure accumulator.
◆ At the condition of 25-30Mpa pressure and high temperature 300℃, it can work well.
◆ Filtration area diameter range ¢50-¢360mm
◆ It can be used for sheet, plate, pipe, film, blown film, wire, cable, profile, granulation and most of thermoplastic materials.

Pictures, drawings and technical data:

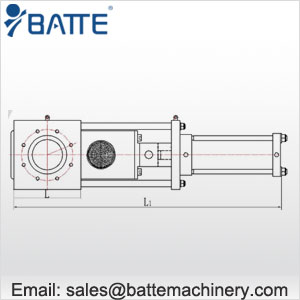

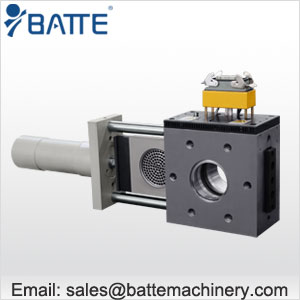

single plate screen changer with two cavities      single plate screen changers for extruder with two screen stations drawing


ZB-SSP-A series single plate screen changers for extruder:

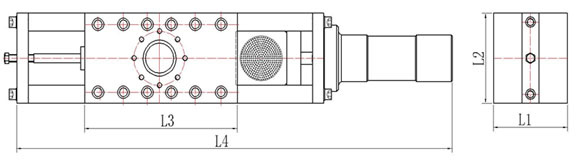

single plate screen changer drawing

Type
Output
Kg/h
Size (mm)
Screen size
Heating tube
L1
L2
L3
L4
Ф(mm)
 cm2
V
KW
ZB-SSP-A-70
75~200
100
715
170
240
Ф70
38
230/400
3.5/5.8
ZB-SSP-A-100
130~350
110
815
185
280
Ф100
78
230/400
4.5/6.8
ZB-SSP-A-120
200~550
130
880
205
320
Ф120
113
230/400
5.2/7.2
ZB-SSP-A-150
350~800
150
990
235
360
Ф150
176
230/400
6.5/8.5
ZB-SSP-A-180
450~1250
160
1035
245
360
Ф180
254
230/400
7.6/9.5
ZB-SSP-A-200
550~1500
180
1155
280
420
Ф200
314
230/400
8.5/11
ZB-SSP-A-250
800~2500
225
1260
300
430
Ф250
490
230/400
9.5/12
ZB-SSP-A-300
1200~3500
260
1440
380
500
Ф300
706
230/400
11.5/15.5
ZB-SSP-A-320
1500~4000
300
1660
400
560
Ф320
803
230/400
13/17.5



ZB-SSP-B series single plate screen changers for extruder:

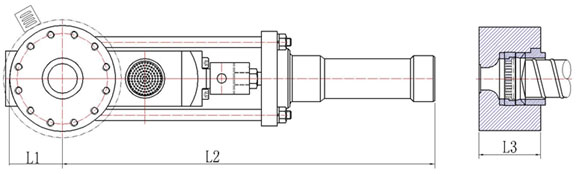

ZB-SSP-B series single plate screen changers for extruder drawing

Type
Output
Kg/h
Size (mm)
Screen size
Heating tube
L1
L2
L3
Ф(mm)
 cm2
V
KW
ZB-SSP-B-70
75~200
115
715
170
Ф70
38
230/400
3.5/5.8
ZB-SSP-B-100
130~350
135
815
185
Ф100
78
230/400
4.5/6.8
ZB-SSP-B-120
200~550
150
880
205
Ф120
113
230/400
5.2/7.2
ZB-SSP-B-150
350~800
170
995
235
Ф150
176
230/400
6.5/8.5
ZB-SSP-B-180
450~1250
185
1120
245
Ф180
254
230/400
7.6/9.5
ZB-SSP-B-200
550~1500
225
1255
280
Ф200
314
230/400
8.5/11
ZB-SSP-B-250
800~2500
260
1325
300
Ф250
490
230/400
9.5/12
ZB-SSP-B-300
1200~3500
285
1470
380
Ф300
706
230/400
11.5/15.5
ZB-SSP-B-320
1500~4000
300
1660
400
Ф320
803
230/400
13/17.5



2) Single plate hydraulic screen changer with four separate filter blocks:

Product introduction and applications:
◆ It consists of filter body and four separate filter blocks. Filter blocks work by turns.
◆ Small fluctuation of pressure in process can keep production continuous and stable.
◆ With filter plate preheat and exhaust, it can keep pressure, flow and temperature stable. It is especially for high transparency and precision products.
◆ It can change filter plate with no leakage, no damage film, no break thread, no stop.
◆ Filter plates move in one-way, work independently, easy to clean.
◆ It can be used for granulation, pipe, plate, sheet, EPE, EPS pearl wool, xps extruded sheet, PVB bursting disk, space plate, squeeze net, BOPET/BOPP, chemical fibers. In PE, PP, drawbench, PEP, EPS production lines, the effect is stable and remarkable. Improved products can meet drawbench of PET and other polyester products.

Principle of operation:

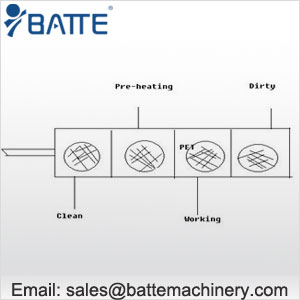

The below of drawing shows the basic function and specification of the single plate type four working station hydraulic screen changer. The four pieces of square shape filter plate are placed between inlet and outlet. The hydraulic station will supply the necessary power to push each screen move to the working station with proper movement. The stainless filter holes will smoothly move into the flow channel without causing much fluctuation and meantime realize self-cleaning function.

Pictures, drawings and technical data:

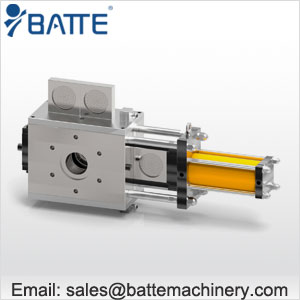

single plate screen changer with four filter blocks      four filter blocks

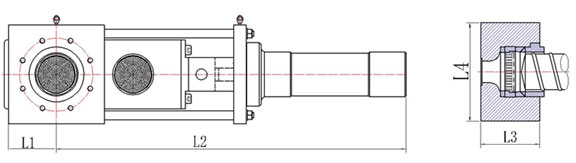

four filter block type single plate screen changer

Type
Output
Kg/h
Size (mm)
Screen size
Heating tube
L1
L2
L3
L4
Ф(mm)
cm2
V
KW
ZB-FSP-70
50~250
170
240
270
850
Ф70
38
230/400
3.2
ZB-FSP-100
220~480
200
280
375
1000
Ф100
78
230/400
4.8
ZB-FSP-120
320~600
240
320
435
1150
Ф120
113
230/400
6.0
ZB-FSP-150
420~900
260
320
525
1400
Ф150
176
230/400
7.2
ZB-FSP-200
500~1100
280
380
700
1750
Ф200
314
230/400
8.2


3) Double plate continuous hydraulic screen changer with double working positions:

Product introduction and advantages:
◆ This screen changers for extruder realize non stop screen changing operation by two pillar with double filtering areas.
◆ Designed lead material exhaust structure, during changing screen with material flow no stop, and then realize no stop changing screen.
◆ Suitable for most polymer extruded production.
◆ During changing screen with no stop production, it cannot cause fluctuation to extruders.
◆ It can work well in 25-30Mpa pressure condition.
◆ It is used for chemical, blown film, flat film, cast film, pipe, plate, wire, fiber, cutting line, recycling and so on.

◆ Simple operation, simple screen changing, and continuous working.
◆ Easy maintenance, leak-free processing, endures precise processing, high product quality and reduced waste materials.

Pictures, drawings and technical data:

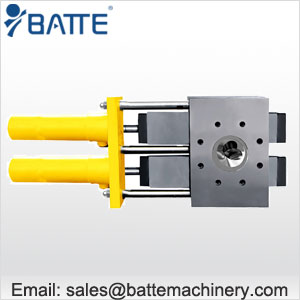

double plate screen changers for extruder

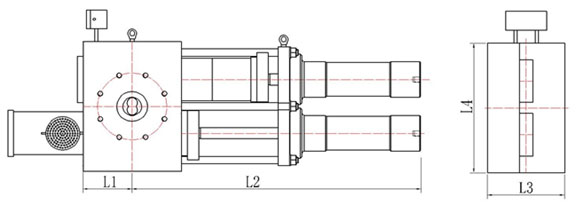

drawing of double plate screen changer

Type
Output
Kg/h
Size (mm)
Screen size
Heating tube
L1
L2
L3
L4
Ф(mm)
cm2
Quantity
V
KW
ZB-DSP-80
110~300
140
775
220
330
Ф80
50×2
6
230/400
1.2/1.7
ZB-DSP-100
180~500
170
895
250
400
Ф100
78×2
6
230/400
1.6/2.0
ZB-DSP-120
350~800
200
1005
310
470
Ф120
113×2
6
230/400
2.0/2.4
ZB-DSP-150
450~1200
245
1170
350
560
Ф150
176×2
6
230/400
2.4/3.0
ZB-DSP-180
500~1500
290
1335
440
600
Ф180
254×2
6
230/400
4.0/4.8
ZB-DSP-200
800~2500
320
1455
450
670
Ф200
314×2
8
230/400
4.5/5.3
ZB-DSP-250
1100~3700
395
1760
490
760
Ф250
490×2
8
230/400
5.0/6.0
