Manual screen changer

Extrusion manual screen changer.pdf

ZB-MSPG manual screen changer introduction:
The MSC manual slide plate screen changer offers an economical, efficient way for plastics processors to filter contaminants from polymer flows. The manual screen changer can be used to filter almost any type of thermoplastic material. Utilizing pressure activated seal technology. The extrusion manual screen changer remains leak free under extrusion pressure yet is easily shifted when the pressure is removed. The MSC is shipped fully assembled requiring minimal downtime to install.

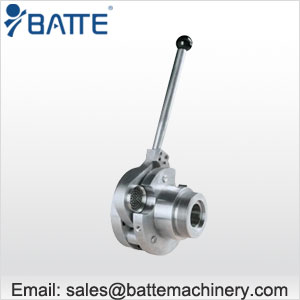

manual screen changer      extrusion manual screen changer


ZB-MSPG manual screen changer properties:
Contaminants in the polymer melt, which caused by metal, wood, paper or internally generated black specks, makes products be unacceptable in appearance and performance. Manual screen changers are the most suitable option for processes that require infrequent changes. Manual screen changers minimize costly downtime for screen replacement. With a simple swing of the handle lever during routine shutdown, clean screens are quickly brought on-line. No line disconnection occurs, and full production is re-established.

The extrusion manual screen changer is ideally suited in applications where process shutdowns occur and there is no loss of production directly related to the screen change itself. It has significant advantages over stationary screen pack breaker plates that can only be changed by machine disassembly.

ZB-MSPG extrusion manual screen changer features and advantages:
◆ Easier installation and easier operation.
◆ The operation handle can be adjusted according to the workshop position.
◆ With its unique rigid material or compensation sealing design, the service life is long.
◆ The position is precise during screen changing.
◆ It is applicable for 90 mm extruder or less than 90 mm extruder plant

ZB-MSPG manual screen changer for extrusion applications:
◆ Blown Film
◆ Pipe/Profile
◆ Compounding
◆ Coextruded Sheet/Film
◆ Wire and Cable
◆ Sheet and Cast Film

Increase end-product quality and consistency, reduce scrap and achieve operating cost savings, especially when processing high recycled content polymers. Filters melt filtration systems have provided worry-free contamination protection for compounding, pipe and profile, plastic film and sheet and specialty extrusion applications.

Slide plate manual screen changers provide a cost effective filtration solution for the polymer extrusion industry. Put a melt pump after the screen changer can further increase the productivity of the extrusion line. Melt filtration systems and screen changers ensure a perfect filtration process, guaranteeing your desired melt quality.

ZB-MSPG extrusion manual screen changer technical data:

Type
Output
Kg/h

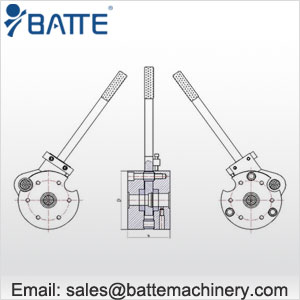

Size (mm)
Screen size
Heating tube
L1
L2
Ф(mm)
 cm2
V
W
ZB-MSPG-40
30~60
140
200
Ф50
20
230/380
1700
ZB-MSPG-50
35~70
150
200
Ф50
20
230/380
1700
ZB-MSPG-60
60~180
170
255
Ф60
28
230/380
2500
ZB-MSPG-70
80~180
170
255
Ф70
38
230/380
2500
ZB-MSPG-80
100~180
175
300
Ф90
64
230/380
2500
ZB-MSPG-90
110~180
175
300
Ф90
64
230/380
3000
ZB-MSPG-100
120~230
180
320
Ф100
78
230/380
4200
Type
Output
Kg/h
Size (mm)
L1
L2
ZB-MSPG-40
30~60
140
200
ZB-MSPG-50
35~70
150
200
ZB-MSPG-60
60~180
170
255
ZB-MSPG-70
80~180
170
255
ZB-MSPG-80
100~180
175
300
ZB-MSPG-90
110~180
175
300
ZB-MSPG-100
120~230
180
320
