ZB-D gear pumps for pipeline

ZB-D gear pumps for pipeline.pdf

ZB-D gear pumps for pipeline applications:
ZB-D series pipeline melt pump is mainly used for stabilizing, pressurization and transportation of medium or high viscosity medium from the polymer flow layer. This series of gear melt pump adopts conduction oil heating, and applies to PET, PBT, PA, PC, PS, SAN, ABS, HIPS, PP, PE, POM, etc.

ZB-D gear pumps for pipeline

Technical parameter of gear pump for pipeline:
◆Material for Melt Pump Body: High temperature tool steel, chromenickel steel or stainless steel
◆Material for Gear: M2 Steel (Optional), stainless steel
◆Material for Sliding Bearing: High Temperature Tool Steel or Stainless Steel
◆Gear Tooth Type: straight gear, helical gear, herringbone gear
◆Shaft Sealing: Spiral sealing, packing sealing, spiral and packing sealing or other combined sealing
◆Heating System: Heating Medium or Conduction Oil Heating
◆Model/Volume Range: 0.5CC-30000CC, 0.5cm3/rev - 12000cm3/rev

Operating Parameter of Pipeline melt pump:
◆ Inlet Pressure: ≤12MPa
◆ Viscosity: ≤40000 Pa.s
◆ Working Temperature: ≤400°C (750°F)
◆ Cleaning Temperature: ≤450°C (850°F)
◆ Outlet Pressure: 40MPa(6000psi)
◆Differential Pressure: ≤25MPa

Type
CC/Rev
Capacity (L/H)
Heating power (kw)
Driven system (km)
Pressure
Temperature
ZB-0.2
0.2
0.2-0.6
0.5
0.37




Inlet pressure: ≥0Mpa


Exit pressure:
≤35Mpa





Operating temperature:≤350℃


Clearing temperature:≤450℃








ZB-1
1
1-3
1
0.5
ZB-2
2
2-6
1
0.75
ZB-5
5
5-15
1
1.1
ZB-10
10
10-30
1
1.5
ZB-20
20
20-60
2
2.2
ZB-31.5
31.5
30-90
2
3
ZB-50
50
50-150
2
4
ZB-100
100
100-300
3
5.5
ZB-150
150
150-450
4
7.5
ZB-200
200
200-600
4
11
ZB-250
250
250-750
5
15
ZB-315
315
300-900
6
18.5
ZB-400
400
400-1200
8
22
ZB-500
500
500-1500
10
30
ZB-630
630
600-1800
12
37
ZB-800
800
800-2400
15
45
ZB-1000
1000
1000-3000
18
55
ZB-1500
1500
1200-4500
20
75
Type
CC/Rev
Capacity (L/H)
Heating power (kw)
ZB-0.2
0.2
0.2-0.6
0.5
ZB-1
1
1-3
1
ZB-2
2
2-6
1
ZB-5
5
5-15
1
ZB-10
10
10-30
1
ZB-20
20
20-60
2
ZB-31.5
31.5
30-90
2
ZB-50
50
50-150
2
ZB-100
100
100-300
3
ZB-150
150
150-450
4
ZB-200
200
200-600
4
ZB-250
250
250-750
5
ZB-315
315
300-900
6
ZB-400
400
400-1200
8
ZB-500
500
500-1500
10
ZB-630
630
600-1800
12
ZB-800
800
800-2400
15
ZB-1000
1000
1000-3000
18
ZB-1500
1500
1200-4500
20

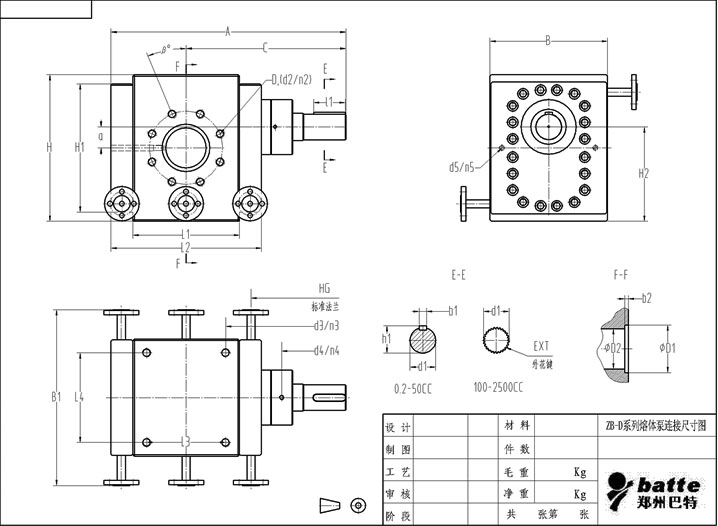

ZB-D pipeline gear pump drawing

Features of gear pumps for pipeline:
◆ Stable output pressure
◆ Improve the quality of products
◆ Improve the productivity of extrusion
◆ Reduce unit energy consumption
◆ Extend the service life of the whole machine
