Product    >>Lean More

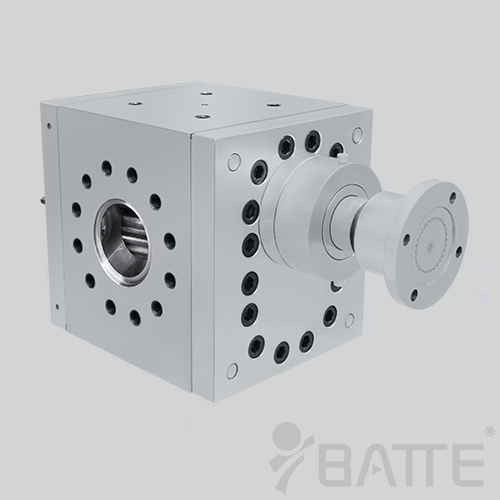

Gear_melt_pump

Gear melt pump for high viscosity medium

Introduction of Standard melt pump ZB-B series standard melt pump is mainly used for extruder pressurization, stabilizing flow and high viscosity polymer. This series of gear melt pump adopts electric heating, and applies to PS, PP, PET...

More

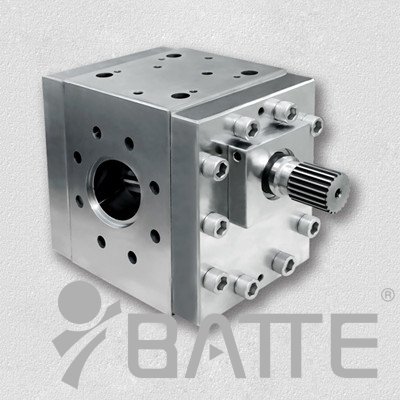

Plastic melt pump for extruder

Plastic melt pump for extruder

Plastic melt pump can reduce the extruder output instability and pressure fluctuation caused by the extrusion machine parameters. Improve the product quality--Extruder melt pump can minimize the dimensional tolerance of the extruded product and reduce the waste...

More
Melt pump for reaction kettle

Melt pump for reaction kettle

Melt pump for reaction kettle is mainly used for transporting medium or high viscosity medium out of the vacuum reaction kettle. On basis of large suction inlet flange design, the high viscosity medium is able to absorb inside under vacuum conditions...

More
Pipeline gear pump for polymer

Pipeline gear pump for polymer

Pipeline gear pump is mainly used for stabilizing, pressurization and transportation of medium or high viscosity medium from the polymer flow layer. This series of pipeline melt pump adopts conduction oil heating, and appliers to PET, PBT, PA, PC, PS, SAN...

More

About Us   >>Lean More

Batte is the leader in the field of Melt pump!

Batte is the leader in the field of Melt pump!

Batte has accumulated abundant experience on the application technique of melt pumps since we manufacture pumps professionally. Recently according to the development trend of melt pumps application all over the world, especially in the field of precise plastic extrusion, we have done extensive research on the pump operation performance, practical function, equipment structure and control technology and achieved regular achievements.

Melt pump is known as a good friend of the extruder!

Melt pump is known as a good friend of the extruder!

Melt pump is mainly transporting high temperature plastic melt that comes from extruder to die, its function is pressurization, stablization and metering, Its stablization of melt is better than any kind of extruder.When melt pump and single screw or twin screw extruder are put into ise withseries connection, the benefit of whole extrusion line will be improved significantly.
The main advantage of using melt pump:
1.Reducing the dimensional tolerance of extrusion product into minimum and use the unit weight material to produce more products.
2.Melt pumps can improve the milling quality and quantity remarkably.
3.Melt pumps also can shorten the production circle to achieve energy saving.
4.You can use several small and medium size extruder feeding material to one melt pump at the same time.

Contact to Batte Melt pump

Click here to chat Or Inquiry

Principle   >>Lean More

Principle

Melt pump belongs to positive displacement gear pump, there is a strict proportional relationship between flow and speed of pump. Its mainly made up of pump housing, driving shaft, driven shaft, sliding bearing, back and front cover packing seal etc.Its inlet zone, transporting zone and discharge zone is constitute by 2 gear's tooth profile, pump housing and lateral cover. When working depends on driving and driven gear's mesh volume variation to transporting melt...More

Series:

ZB series melt pump is mainly used in high temperature and high viscosity polymer melt transportation,pressurization and metering.ZB series high temperature melt pump's capacity from 0.5cc/rev-3200cc/rev,It can satisfy all kinds of single screw,cone-shape screw,parallel twin screw extruder requirements. FB series high temperature metering pump mainly used for transporting medium or high viscosity medium out of the vacuum reaction kettle...More

Function:

Melt pump is mainly transporting high temperature plastic melt that comes from extruder to die,its function is pressurization,stablization and metering,Its stablization of melt is better than any kind of extruder.When melt pump and single screw or twin screw extruder are put into ise withseries connection,the benefit of whole extrusion line...More

  • Polymer_melt_pump_on_the_production_line.pdf
  • Plastic_extrusion_machinery.pdf
